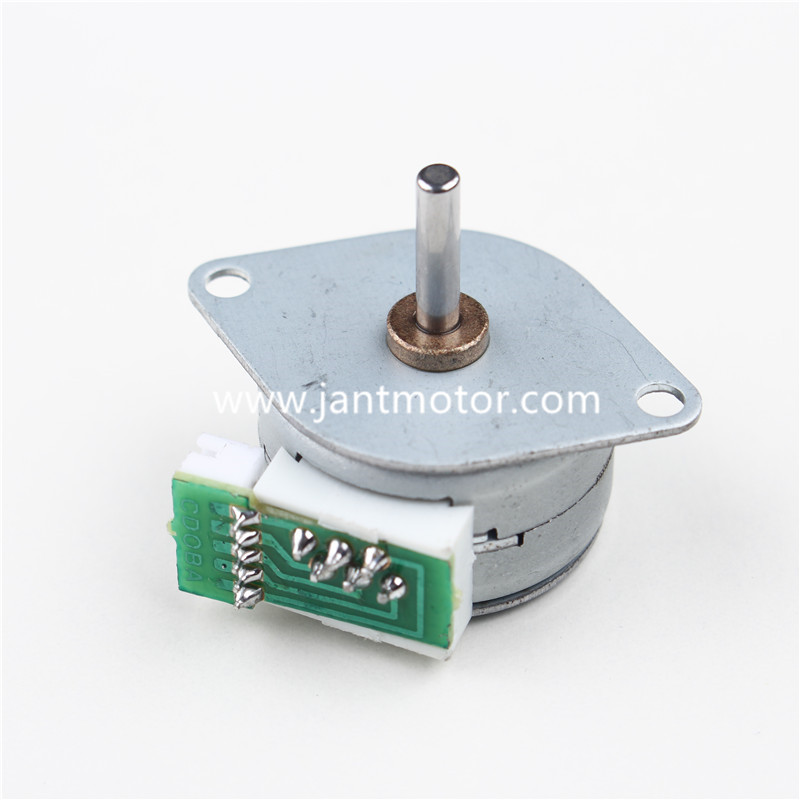

Product ID : 35BY
Product Tags : Stepper motor
Product Description

Description: The the 35BY permanent magnet stepper motor has a simple mechanism, low noise, speed adjustable, long life characteristics. Widely used in the banking and office equipment, telecom equipment, printers, copiers, fax machines, scanners, textile machinery, medical, automatic control, building automation valves, massage chairs and stage lighting, automotive, surveillance systems, electric advertising, electric curtains, science and education equipment, air conditioning and other fields.

Technical parameters

Model

35BY

Number of phases

4-1-2

4-2

2-2

Step Angle(°)

7.5/3.75

15/7.5

15/7.5

Rated voltage(DCV)

24

12

5

DC Resistance(Ω)

300

150

40

No-load pull -in

frequency(PPS)

≧500

No-load pull out

frequency(PPS)

≧700

Pull-in

torque(g.cm)

35-50(200pps)

Self-positioning

Torque(g.cm)

≦50

Coil temperature

rise(K)

≦40

Noise(db)

≦40

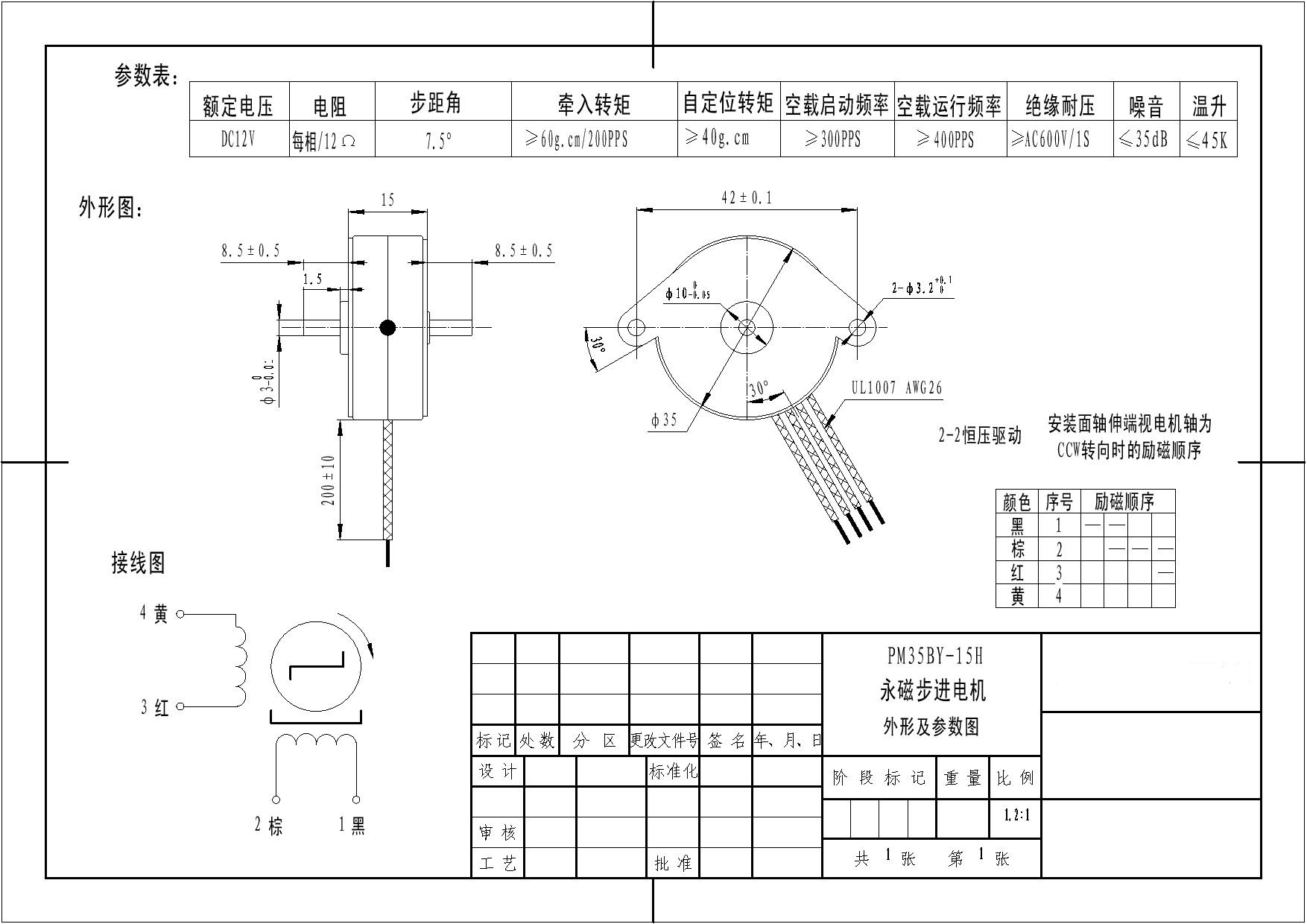

35BY drawing.jpg
